What is an MPPT Inverter? Advantages and Disadvantages

What is an MPPT Inverter? Advantages and Disadvantages

2024-06-18

An MPPT(Maximum Power Point Tracking) inverter is a key component in solar energy systems that optimizes the power output from solar panels. In this article, we will explore the advantages and disadvantages of MPPT inverters and know more about the functions of MPPT inverters can help homeowners gain valuable insights for their renewable energy solutions.

What is an MPPT Inverter?

MTTP inverter is a specialized device that combines the functions of a solar charge controller and an inverter into a single unit, it is used in home energy systems that optimize the energy output from photovoltaic(PV) panels. Its primary purpose is to adjust the electrical operating point of the modules continuously, the production of the maximum possible power from solar panels under varying conditions. By tracking the maximum power point, the MTTP inverter improves the efficiency of the solar system, converting more of the available solar energy into usable electricity for homes and businesses.

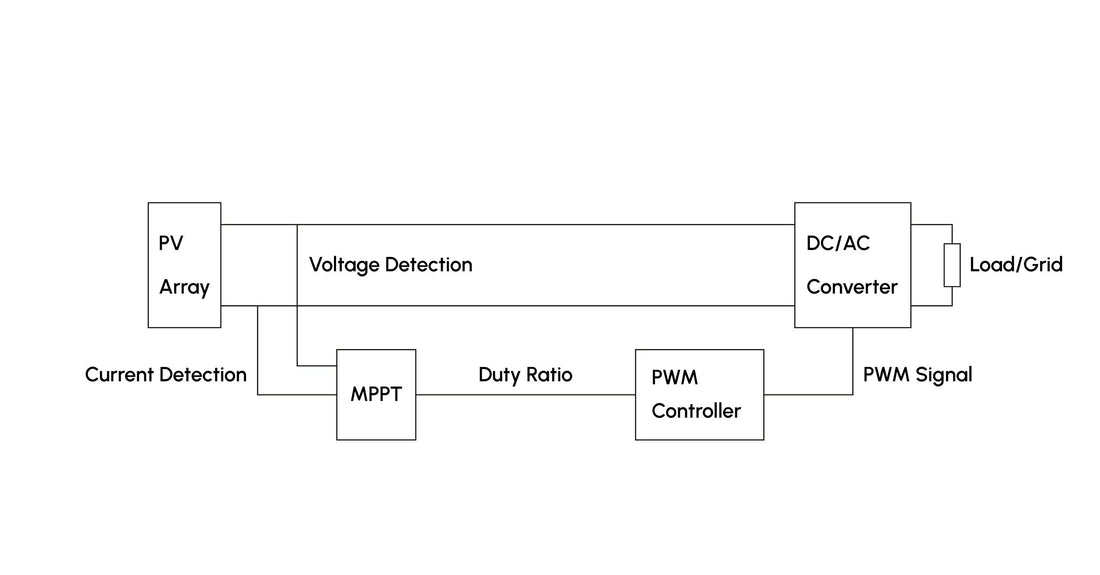

MPPT Inverter


How Does MPPT Work?

The MPPT(Maximum Power Point Tracking) controller can monitor the output of solar and the inveter adjusting the electrical load to ensure the system operates at the optimal voltage and current combination that yields peak power output.
The MPPT algorithm uses a DC-DC converter to dynamically adjust the solar panel’s voltage to match the MPP. If the sunlight intensity or temperature changes, it cause the MPP to shift; the MPP rapidly adapts by modifying the panel’s operating voltage to realign with the new MPP.

By tracking and maintaining the solar panels at their maximum power point, regardless of environmental fluctuations, MPPT ensures the panels operate at their highest efficiency at all times. This results in increased energy harvest of up to 30% compared to PWM systems.

Advantages of MPPT Inverters

With the advanced MPPT technology, MPPT(Maximum Power Point Tracking) inverters offer several key advantages over traditional inverters:

1. Increased Energy Yield

MPPT inverters are designed to increses the energy yield from solar panels by continuously tracking and adjusting the operating point to extract maximum possible power at any given time, even under varying conditions like partial shading or panel mismatches. This results higher overall energy production by 10-30% compared to traditional inverters. For a 5kW solar system, with an MPPT inverter can result in an additional 500-1500 kWh of energy production per year.

2. Higher Efficiency

By operating solar panels at their maximum power point, MPPT inverters typically convert 95-99% of the available solar energy into usable electrical power. This efficiency stems from their ability to match the panel’s output voltage and current to the optimal levels from maximum power generation. Higher efficiency translated into greater energy savings and faster return on investment for solar power systems.

3. Flexible System Design

The flexibility in system design is another advantage of MPPT inverters. They can accommodate a wide range of solar panel configurations, including panels connected in series or parallel and with different orientations and panel sizes. This adaptability allows for easier system expansion and different installation conditions, it enables system designers to work around site-specific constraints or limitations and efficient solar power solutions.

4. Faster Battery Charging

In hybrid solar or off-grid systems with battery storage, MPPT inverters can charge the batteries more efficiently, the charge rates is up to 30% compared to non-MPPT. By delivering the maximum available power from the solar panels, these inverters ensure that batteries are charged more quickly, it can reduce charging time by 1-2 hours per day. It is crucial for solar systems to maintain a reliable and consistent power supply, and it can lead to improved battery life and better overall system performance.

5.  Performance Monitoring

Many MPPT inverters provide advanced performance monitoring capabilities, allowing users to track the real-time performance of each solar panel array or string separately, such as energy production, consumption, and system efficiency. This granular monitoring facilitates proactive maintenance and troubleshooting, ensuring optimal system performance and reducing downtime of their solar power setup.

Disadvantages of MPPT Inverters

While MPPT inverters offer several key advantages over traditional inverters, they also have some potential disadvantages:

1. Higher Upfront Cost: MPPT inverters are generally more expensive than traditional inverters due to their advanced technology and additional components required for maximum power point tracking. The higher initial cost can be a barrier, especially for smaller residential solar systems.

2. Added Complexity: The MPPT algorithm and circuity add complexity to the inverter design and operation compared to standard inverters. It can lead to more intricate installation processes, configuration, and maintenance more challenging, which can increase the risk of failures and make troubleshooting more difficult, requiring specialized knowledge and training.

3. Potential Reliability Issues: While MPPT inverters are designed to be durable, with more components and complexity, they may be more prone to higher failure rates over time compared to simpler inverter designs. Additionally, the high-frequency switching required for MPPT can generate more heat, which might necessitate more frequent repairs or replacements.

4. Performance in Extreme Conditions: In certain extreme conditions, such as very high temperatures or partial shading, the performance advantage of MPPT inverters may be diminished or even negated, leading to reduced energy yield compared to ideal conditions. In these environmental stresses, MPPT may not provide significant benefits over simple inverter designs.

 Applications of MPPT Inverters

· Residential solar power systems: MTTP inverters ensure optimal performance of rooftop solar panels. Increasing energy yield and reducing electrical bills for homeowners.

· Commercial and industrial solar installations: Large-scale commercial and industrial solar projects often employ MPPT inverters; they can handle diverse panel orientations, shading conditions, and mismatch losses to optimize energy production and ensure efficient operation.

· Off-grid and hybrid systems: MPPT inverters are essential components in off-grid setup and hybrid systems, where they help charge batteries more efficiently and manage power flow between solar panels, batteries, and load. This is particularly beneficial in remote areas or applications where grid power is unreliable or unavailable.

For reliable and efficient hybrid solar energy systems, Hinen offers a range of solar inverters with MPPT technology. Hinen Microinverter boasts a 4-in-1 design for maximum efficiency, independent MPPT control, and component-level monitoring. It delivers up to 2000W of power, making it ideal for modern energy systems.

Hinen 2kW Microinverter

Conclusion

MPPT inverters are essential for maximizing energy output and efficiency in residential, commercial, and industrial solar power systems, as well as off-grid and hybrid setups. MPPT technology enhances the effectiveness of solar energy systems and improves energy conversion, providing significant cost savings and reliability. To explore more about MPPT inverters and how they can benefit your solar energy performance, consider delving into Hinen hybrid energy storage solutions.
